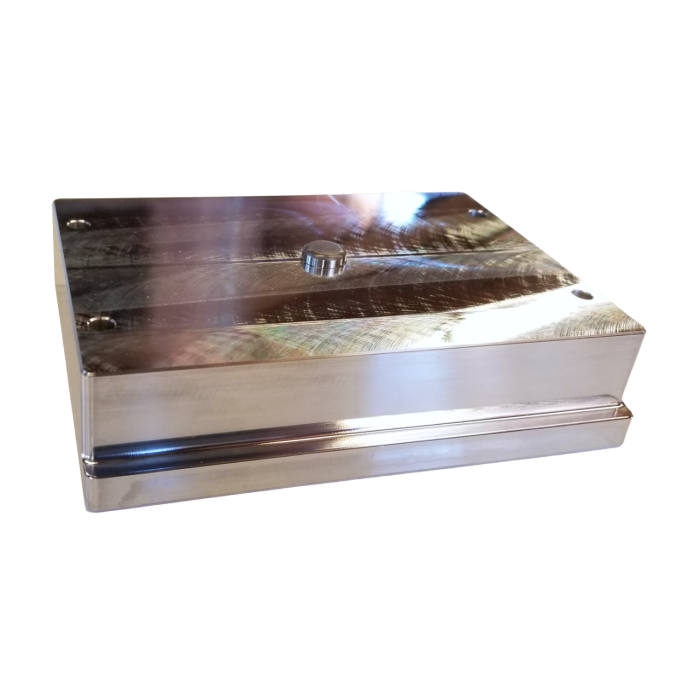

Mold Spacer for Morgan Press

This spacer is used to adapt our Protoframe mold frames for use in the Morgan Press G-55T, G-100T- or G-125T.
The Morgan Press requires a minimum mold thickness of 5 inches, and a spacer is required for thinner molds. Sizes are available to fit our MFS655040 and MFS505040 mold frames, and can also be used for similarly sized molds from other manufacturers. A 9/16" locating pin is included in the top of the spacer, and a 9/16" locating hole is provided in the bottom. The locating pin can be pressed out of the spacer if desired. The spacer has provisions to be clamped to the bottom platen of the press, or bolted to the bottom of the mold frame.

• 1.48" thick
• Made from 6061 aluminum with steel locating pin
