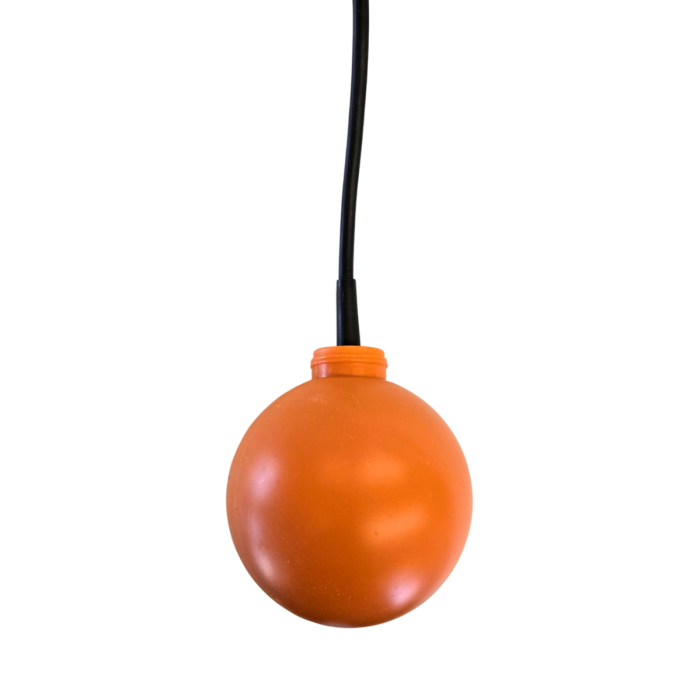

Kobold NSP-5201 Ball Float Switch

Kobold NSP series tethered ball float switch. Mercury-free mechanical float switch with a narrow switching angle. SPDT contacts can be connected N/O for pump-down applications or N/C for pump-up applications, low current pilot duty only.

Float Material: Polypropylene.
Cable: TPK 3 conductor cable, 13 ft (4 m) length.
Contact type: SPDT mechanical switch, connectable as N.O. or N.C.
Contact rating: 300 VA, 60W, 1mA to 1.5A, Max 250 VAC / 150 VDC
Switching angle: Approx. +12° from horizontal to Activate, -3° to Deactivate
Max. pressure: 30 PSIG (2 bar)
Max temperature: 140 °F (60 °C)
Ballast weight: Sold separately
