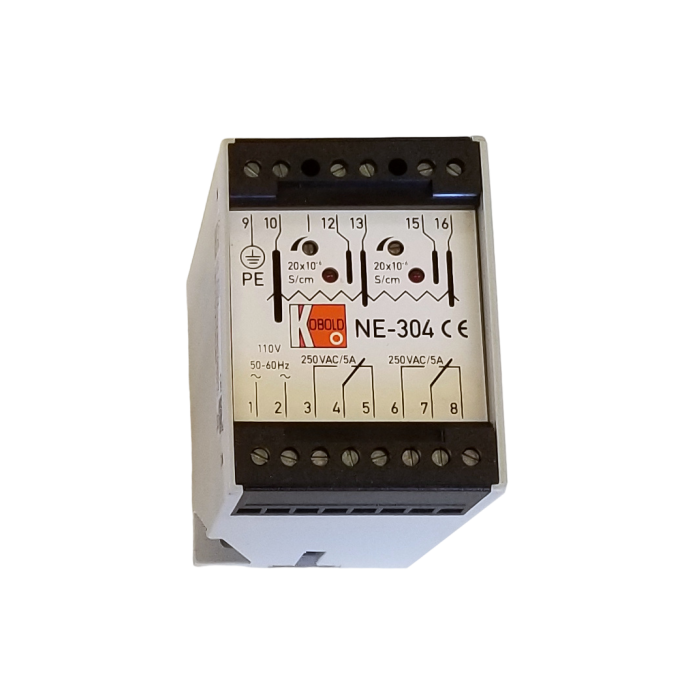

Kobold NE-304 Liquid Level Control Relay, Dual Channel

$382.00
In stock
Only %1 left
SKU
KOBOLD-NE304

Liquid level control relay with solid state sensing circuit, dual channel.

The Kobold NE-304 is a versatile dual level sensing relay for use with conductive electrodes. It can be used for pump-up, pump-down, high level sensing, or low level sensing. The solid state sensing circuit is adjustable from 0-50 kΩ sensitivity, ideal for most water and conductive liquids.

Power Supply: 230 VAC, 110 VAC, 24 VAC ±15%, 50-60 Hz
Power Consumption: 4 VA
Max. Electrode Voltage: 10 VAC
Max. Electrode Current: 0.5 mA
Sensitivity (Adjustable): 0-50 kΩ
Response Time: Approx. 1 Second
Ambient Op. Temp: -4...140 °F
Output: 2 SPDT Relay, Max. 250 VAC @ 5 A, 600 VA
Installation: Rail Mountability for DIN 46121 Rail

More Information
SKU KOBOLD-NE304
Shipping Weight (LBS) 1.000000
Manufacturer Kobold
Manufacturer Part Number NE-304
