DSG-Canusa FCFW QuickWrap Wraparound Repair Sleeve
As low as
$35.91
In stock
Only %1 left
SKU
CANUSA-FCFWQUICKWRAP

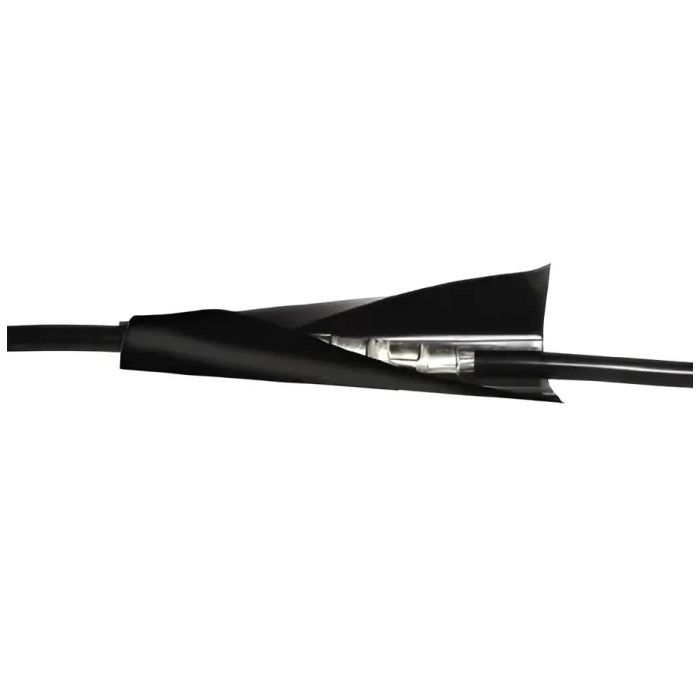

Wraparound cable repair sleeve with adhesive strip closure
Wraparound cable repair sleeve with adhesive strip closure. Ideal for repair of damaged cable jackets when it is not possible to slide tubing over the damaged area from an end.
- Thermoplastic adhesive provides waterproof seal
- Flame retardant
- Rated for 1 kV, 90°C continuous use
- 3:1 shrink ratio
- Continuous operating temperature: -55°C to 110°C
- Shrink temperature: 120°C
- Comes in 12" lengths. Can be cut to length in the field.
Sizing
| Order Number | Expanded Sleeve I.D. (Min) | Expanded Sleeve I.D. (Max) | Application Range | Conductor Size AWG/MCM 600/1000V |
| 1500 | 0.75" (19.1 mm) | 1.14" (29.0 mm) | 0.5" - 1.00" (13mm - 25mm) | #2/0 - 350 |
| 2000 | 1.00" (25.4 mm) | 1.64" (41.7 mm) | 0.7" - 1.5" (18mm - 28mm) | 250 - 500 |
| 2700 | 1.35" (34.3 mm) | 2.32" (58.9 mm) | 1.0" - 2.0" (25mm - 58mm) | 600 - 1000 |
| SKU | CANUSA-FCFWQUICKWRAP |
|---|---|
| Shipping Weight (LBS) | 1.000000 |
| Closure Type | Railless |
| Color | Black |
| Manufacturer | DSG-Canusa |
| Manufacturer Part Number | FCFW-QuickWrap |
| Packaging | 12" Lengths |
| Adhesive Lining | Adhesive Lined |
| Shrink Ratio | 3:1 |
| Material | Polyolefin |
