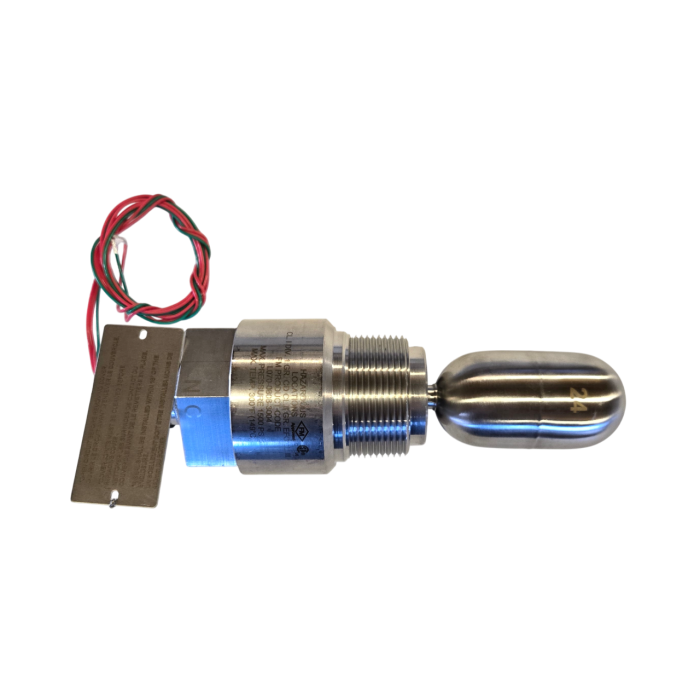

Ametek SWI L070 Side Mount SS Float Switch for Hazardous Locations

Ametek SWI L070-0808-3004 side mount float switch for hazardous locations. This rugged stainless steel float switch has a safe, isolated switch enclosure for monitoring high or low liquid levels. The float uses an encapsulated magnet to actuate a hermetically sealed reed switch located in a separate chamber. The SPST contact can be normally open or normally closed depending on the orientation that the switch is installed. The L070 is FM approved for Class I, Div I, Groups A, B,C, D, E, F & G hazardous locations.

Stem Material: 316 Stainless Steel.
Float Material: 316 Stainless Steel.
Mounting: 1-1/2" NPT
Contact type: Single Pole Single Throw (SPST). Field convertible from N.O. to N.C.
Contact rating: 100 VA (240 volts AC/DC Max. Resistive)
Max. pressure: 1500 PSIG (103.4 bar)
Operating temperature: -40 °F to 300 °F (-40 to +148.9 ºC)
Specific gravity: 0.40
