Ametek Gemco 955D-VP BRIK Gen III Linear Displacement Transducer - RS422 Variable Pulse Digital Output (Special Order)
Digital output Linear Displacement Transducer (LDT) in a low profile extruded aluminum package. RS-422 Variable Pulse (PWM) output. Pictured with SD0521800 slide magnet (not included). Uses Ametek's field proven magnetostrictive technology to give absolute position, repeatable to .006% of the programmable sensing distance.
The 955D-VP is a digital output Linear Displacement Transducer (LDT) in a low profile extruded aluminum package. This transducer uses Ametek's field proven magnetostrictive technology to give absolute position, repeatable to .006% of the programmable sensing distance. The Ametek 955 series has an auto tuning feature that allows it to sense a magnet other than the standard slide magnet and adjust its signal strength accordingly.
The 955D-VP BRIK variable pulse system, or pulse width modulated (PWM), generates a digital output over a RS-422 line. The system is available with both internal and external interrogation. The system with external interrogation looks for a recommended one microsecond input pulse, or start pulse, which is provided by the customer’s computer device. An output pulse is then generated by the BRIK LDT with a duration proportional to the position of the magnet. Using the internal interrogation option, the output signal will be generated automatically without an input pulse. For both internal and external interrogation, the frequency of the signal generation is dependent upon settings made at the factory. Recirculation from one to 127 are available through these factory settings. For internal interrogation, the update time is set for the quickest time based on the number of recirculation specified. This update time, which alters the frequency of signal generation, can be changed at the factory.

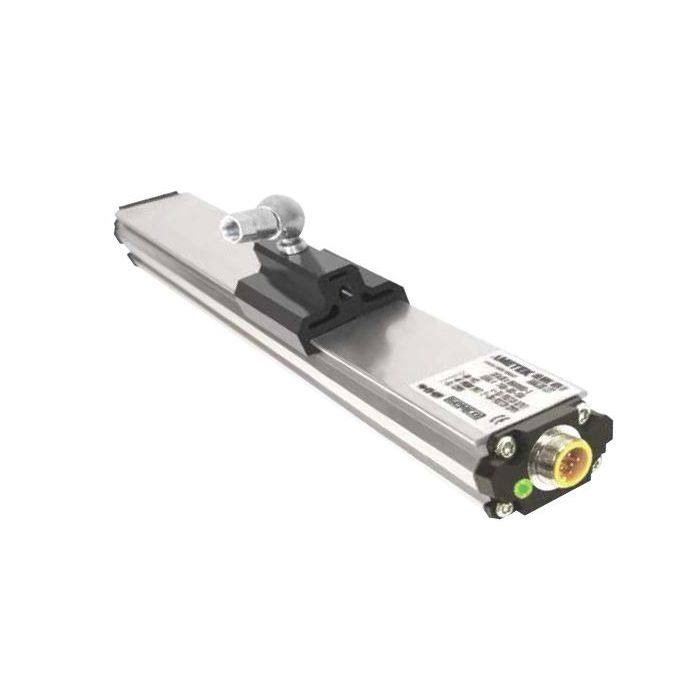

Pictured with SD0521800 slide magnet (not included).
A complete system normally requires the following components:
- 955D transducer
- Magnet (purchased separately)
- Cable Assembly (purchased separately)
- Mounting feet (purchased separately). It is recommended to use one mounting foot at each end and one every three feet between.
Usually ships 8-10 weeks after receipt of order
Gemco linear displacement transducers are built to order, and are not returnable. If you have any questions about using this product in your application, please do not hesitate to call or email us.
Accessories (purchased separately)
| Slide Magnet | SD0521800 |
| Floating Magnet | SD0522100 |
| Wide Floating Magnet | SD0551500 |
| Mounting Foot | SD0522000 |
| 6 Ft., 6 Pin Cable | 949021L6 |
| 12 Ft., 6 Pin Cable | 949021L12 |
| 6 Ft., 6 Pin Cable; Right Angle Connector | 949022L6 |
| 12 Ft., 6 Pin Cable; Right Angle Connector | 949022L12 |
Other Resources
955D Datasheet
955D Manual
Linear Displacement Transducers Overview
| SKU | GEMCO-955DVP |
|---|---|
| Manufacturer | Ametek |
| Manufacturer Part Number | 955D-VP |
| Country of Manufacture | United States |
| Shipping Weight (LBS) | 17.000000 |
| Supply Voltage | 13.5-30 VDC |
| Analog Output: 4-20 mA | No |
| Analog Output: 0-10 VDC | No |
| Digital Output: Stop/Start | No |
| Digital Output: Control Pulse | No |
| Digital Output: Pulse Width Modulated | Yes |
| Digital Output: Velocity | Controller Dependent |
| Digital Output: Ethernet/IP | No |
| Digital Output: SSI (Synchronous Serial Interface) | No |
| Digital Output: Modbus | No |
| Position Accuracy (of full stroke) | 0.05% |
| Repeatability (of full stroke) | 0.006% |
| Resolution | Controller Dependent |
| Lengths - 0.1" Increments | 5-180” |
| Null Zone | 3” |
| Dead Band | 2" |
| In Cylinder Mounting | No |
| Enclosure Rating (IP) | IP67, IP68 Optional |
| Optional Mill Duty Housing | No |
| Hand-Held Programmer | Consult Factory |
| Programmable from PC | Consult Factory |
| Competitive Style Connector | No |
| High Shock and Vibration | Good |
| Multiple Magnets | Yes |
| Universal Mounting Kit | Yes |
| Metric Threads and Dimensions | Yes |
| All Stainless Steel (Head & Potted Connector) | No |
| High Temp Cables | No |
