Ametek Gemco 2006 Type K 4 Circuit Rotary Limit Switch (In Stock)

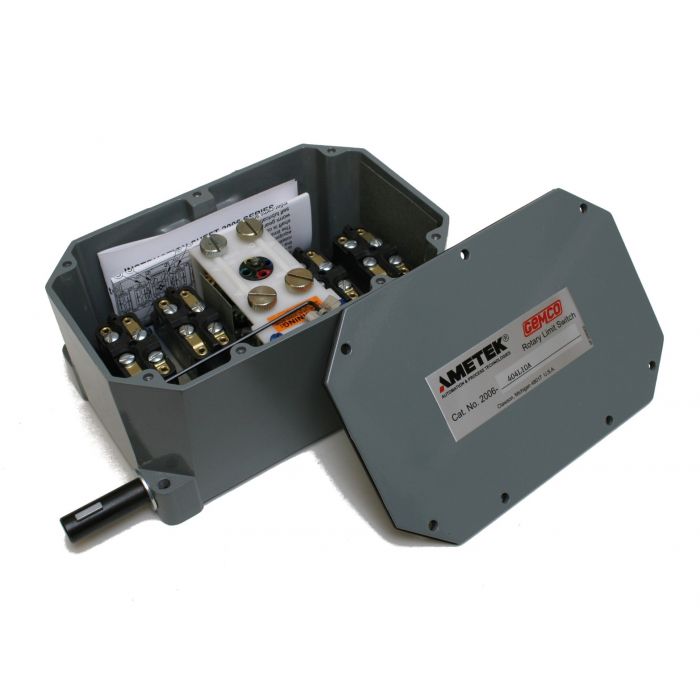

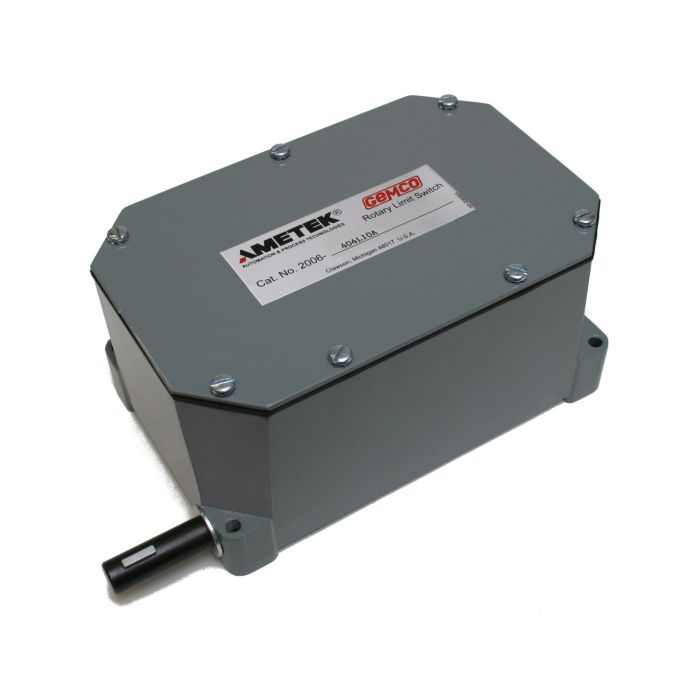

Gemco type K rotary limit switch, four circuits with SPDT or DPDT snap action switches, NEMA 4 enclosure. Features all metal gearing with ratios from 5:1 to 1080:1.
2006 type K Series Rotary Limit Switches control the limits of a linear or rotary motion. The limit switch is often used on hoists, packaging and material handling equipment, conveyors, door controls, and rotary operators where motion is converted to shaft rotation.The limit switch is often used to protect against accidental damage to equipment.
Available in NEMA Type 4 enclosures. These incorporate a synthetic gasket which prevents exposure to oil, water and dust. Switches may be mounted without internal interference.
Gemco Rotary Limit Switches are highly dependable.
The 1/2” input shaft drives a bronze gear which rotates the cam block. The cam block houses independently adjustable cams that actuate the precision type snap action switches. Each switch can be provided with four circuits. No minimum speed is specified because snap action contacts are used. Maximum rated speed of the worm shaft is 1000 RPM and can be rotated clockwise or counterclockwise.
Featuring:
- All Metal Gearing
- S.P.D.T. or DPDT Industrial Duty Switches
- NEMA 4 Enclosures
- Gear Ratios from 5:1 to 1080:1
- Rugged Duty Die Cast Enclosures
- Positive, Independent Cam Settings
- Large Cover Openings for Ease of Wiring
- GEMCO rugged duty precision snap action switches
- U.L. & CSA recognized switches
| Input Shaft Rev. | Cam Block Rev. |
Shaft Extension |
Switch Type |
Gemco Part # |
Input Shaft Turns Max. Setting |
Input Shaft Turns To Reset |
| 5 | 1 | Left | SPDT | 2006-404-L-5-A | 4 | 1/16 |
| 10 | 1 | Left | SPDT | 2006-404-L-10-A | 8-1/2 | 1/8 |
| 20 | 1 | Left | SPDT | 2006-404-L-20-A | 17 | 1/4 |
| 30 | 1 | Left | SPDT | 2006-404-L-30-A | 26 | 3/8 |
| 40 | 1 | Left | SPDT | 2006-402-L-40-A | 35 | 1/2 |
| 60 | 1 | Left | SPDT | 2006-404-L-60-A | 53 | 3/4 |
| 80 | 1 | Left | SPDT | 2006-404-L-80-A | 72 | 1 |
| 120 | 1 | Left | SPDT | 2006-404-L-120-A | 108 | 1-1/2 |
| 270 | 1 | Left | SPDT | 2006-404-L-270-A | ||
| 357 | 1 | Left | SPDT | 2006-404-L-357-A | ||
| 1080 | 1 | Left | SPDT | 2006-404-L-1080-A | ||
| Input Shaft Rev. | Cam Block Rev. |
Shaft Extension |
Switch Type |
Gemco Part # |
Input Shaft Turns Max. Setting |
Input Shaft Turns To Reset |
| 5 | 1 | Left | 1-DPDT, 3-SPDT | 2006-404-L-5-B | 4 | 1/16 |
| 10 | 1 | Left | 1-DPDT, 3-SPDT | 2006-404-L-10-B | 8-1/2 | 1/8 |
| 20 | 1 | Left | 1-DPDT, 3-SPDT | 2006-404-L-20-B | 17 | 1/4 |
| 30 | 1 | Left | 1-DPDT, 3-SPDT | 2006-404-L-30-B | 26 | 3/8 |
| 40 | 1 | Left | 1-DPDT, 3-SPDT | 2006-404-L-40-B | 35 | 1/2 |
| 60 | 1 | Left | 1-DPDT, 3-SPDT | 2006-404-L-60-B | 53 | 3/4 |
| 80 | 1 | Left | 1-DPDT, 3-SPDT | 2006-404-L-80-B | 72 | 1 |
| 120 | 1 | Left | 1-DPDT, 3-SPDT | 2006-404-L-120-B | 108 | 1-1/2 |
| 270 | 1 | Left | 1-DPDT, 3-SPDT | 2006-404-L-270-B | ||
| 357 | 1 | Left | 1-DPDT, 3-SPDT | 2006-404-L-357-B | ||
| 1080 | 1 | Left | 1-DPDT, 3-SPDT | 2006-404-L-1080-B | ||
| Input Shaft Rev. | Cam Block Rev. |
Shaft Extension |
Switch Type |
Gemco Part # |
Input Shaft Turns Max. Setting |
Input Shaft Turns To Reset |
| 5 | 1 | Left | 2-DPDT, 2SPDT | 2006-404-L-5-C | 4 | 1/16 |
| 10 | 1 | Left | 2-DPDT, 2SPDT | 2006-404-L-10-C | 8-1/2 | 1/8 |
| 20 | 1 | Left | 2-DPDT, 2SPDT |
2006-404-L-20-C | 17 | 1/4 |
| 30 | 1 | Left | 2-DPDT, 2SPDT | 2006-404-L-30-C | 26 | 3/8 |
| 40 | 1 | Left | 2-DPDT, 2SPDT | 2006-404-L-40-C | 35 | 1/2 |
| 60 | 1 | Left | 2-DPDT, 2SPDT | 2006-404-L-60-C | 53 | 3/4 |
| 80 | 1 | Left | 2-DPDT, 2SPDT | 2006-404-L-80-C | 72 | 1 |
| 120 | 1 | Left | 2-DPDT, 2SPDT | 2006-404-L-120-C | 108 | 1-1/2 |
| 270 | 1 | Left | 2-DPDT, 2SPDT | 2006-404-L-270-C | ||
| 357 | 1 | Left | 2-DPDT, 2SPDT | 2006-404-L-357-C | ||
| 1080 | 1 | Left | 2-DPDT, 2SPDT | 2006-404-L-1080-C | ||
| Input Shaft Rev. | Cam Block Rev. |
Shaft Extension |
Switch Type |
Gemco Part # |
Input Shaft Turns Max. Setting |
Input Shaft Turns To Reset |
| 5 | 1 | Left | 3-DPDT, 1SPDT | 2006-404-L-5-D | 4 | 1/16 |
| 10 | 1 | Left | 3-DPDT, 1SPDT | 2006-404-L-10-D | 8-1/2 | 1/8 |
| 20 | 1 | Left | 3-DPDT, 1SPDT | 2006-404-L-20-D | 17 | 1/4 |
| 30 | 1 | Left | 3-DPDT, 1SPDT | 2006-404-L-30-D | 26 | 3/8 |
| 40 | 1 | Left | 3-DPDT, 1SPDT | 2006-404-L-40-D | 35 | 1/2 |
| 60 | 1 | Left | 3-DPDT, 1SPDT | 2006-404-L-60-D | 53 | 3/4 |
| 80 | 1 | Left | 3-DPDT, 1SPDT | 2006-404-L-80-D | 72 | 1 |
| 120 | 1 | Left | 3-DPDT, 1SPDT | 2006-404-L-120-D | 108 | 1-1/2 |
| 270 | 1 | Left | 3-DPDT, 1SPDT | 2006-404-L-270-D | ||
| 357 | 1 | Left | 3-DPDT, 1SPDT | 2006-404-L-357-D | ||
| 1080 | 1 | Left | 3-DPDT, 1SPDT | 2006-404-L-1080-D | ||
| Input Shaft Rev. | Cam Block Rev. |
Shaft Extension |
Switch Type |
Gemco Part # |
Input Shaft Turns Max. Setting |
Input Shaft Turns To Reset |
| 5 | 1 | Left | 4-DPDT | 2006-404-L-5-E | 4 | 1/16 |
| 10 | 1 | Left | 4-DPDT | 2006-404-L-10-E | 8-1/2 | 1/8 |
| 20 | 1 | Left | 4-DPDT | 2006-404-L-20-E | 17 | 1/4 |
| 30 | 1 | Left | 4-DPDT | 2006-404-L-30-E | 26 | 3/8 |
| 40 | 1 | Left | 4-DPDT | 2006-404-L-40-E | 35 | 1/2 |
| 60 | 1 | Left | 4-DPDT | 2006-404-L-60-E | 53 | 3/4 |
| 80 | 1 | Left | 4-DPDT | 2006-404-L-80-E | 72 | 1 |
| 120 | 1 | Left | 4-DPDT | 2006-404-L-120-E | 108 | 1-1/2 |
| 270 | 1 | Left | 4-DPDT | 2006-404-L-270-E | ||
| 357 | 1 | Left | 4-DPDT | 2006-404-L-357-E | ||
| 1080 | 1 | Left | 4-DPDT | 2006-404-L-1080-E | ||
| Input Shaft Rev. | Cam Block Rev. |
Shaft Extension |
Switch Type |
Gemco Part # |
Input Shaft Turns Max. Setting |
Input Shaft Turns To Reset |
| 5 | 1 | Left | 1950-1408(Quick Reset) | 2006-404-L-5-R | 4 | 1/16 |
| 10 | 1 | Left | 1950-1408(Quick Reset) | 2006-404-L-10-R | 8-1/2 | 1/8 |
| 20 | 1 | Left | 1950-1408(Quick Reset) | 2006-404-L-20-R | 17 | 1/4 |
| 30 | 1 | Left | 1950-1408(Quick Reset) | 2006-404-L-30-R | 26 | 3/8 |
| 40 | 1 | Left | 1950-1408(Quick Reset) | 2006-404-L-40-R | 35 | 1/2 |
| 60 | 1 | Left | 1950-1408(Quick Reset) | 2006-404-L-60-R | 53 | 3/4 |
| 80 | 1 | Left | 1950-1408(Quick Reset) | 2006-404-L-80-R | 72 | 1 |
| 120 | 1 | Left | 1950-1408(Quick Reset) | 2006-404-L-120-R | 108 | 1-1/2 |
| 270 | 1 | Left | 1950-1408(Quick Reset) | 2006-404-L-270-R | ||
| 357 | 1 | Left | 1950-1408(Quick Reset) | 2006-404-L-357-R | ||
| 1080 | 1 | Left | 1950-1408(Quick Reset) | 2006-404-L-1080-R |
|
Cross Reference 4 Circuit Rotary Switch |
|
|
Cutler Hammer Part No. |
GEMCO Part No. |
| 10316H-158-1 | 2006-404-L-120-A |
| 10316H-159-1 | 2006-404-L-60-A |
| 10316H-160-1 | 2006-404-L-40-A |
| 10316H-173-1 | 2006-404-L-1080-A |
| 10316H-175-1 | 2006-404-L-357-A |
| 10316H-1026-1 | 2006-404-L-10-A |
| 10316H-1027-1 | 2006-404-L-20-A |
| 10316H-4568-1 | 2006-404-L-5-A |
| 10316H-4569-1 | 2006-404-L-30-A |
| 10316H-4571-1 | 2006-404-L-80-A |
| 10316H-4600-1 | 2006-404-L-270-A |
| SKU | GEMCO-2006404 |
|---|---|
| Shipping Weight (LBS) | 8.000000 |
| Manufacturer | Ametek |
| Manufacturer Part Number | 2006-404-L |
| Country of Manufacture | United States |
| NEMA Rating | 4 |
| Number of Cams | 4 |
| Shaft Extension Side | Left |
