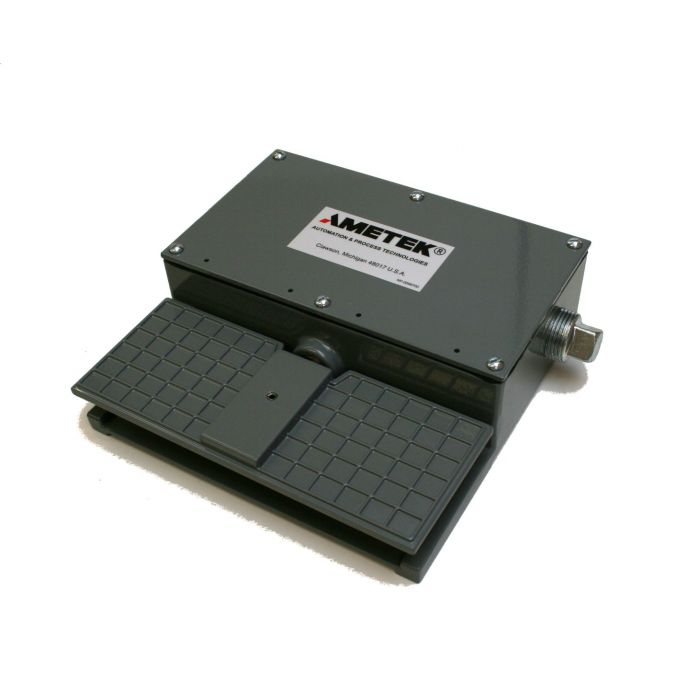

Ametek Gemco 1025C Side Treadle Operated Foot Switch
The 1025 C Heavy Duty side treadle foot switches mount two switches or two air valves in the bottom of a NEMA 4 enclosure, available with or without a shield. Frequently used to control industrial processes.
The 1025 C Heavy Duty side treadle foot switches mount two SPDT or DPDT switches or two air valves in the bottom of of the case. Available with or without a shield. The treadle works in a manner comparable to a rocker lever pivoted in the center. It operates one contact block in one direction and the other contact block in the opposite direction.
NEMA Type 4 die cast enclosures incorporate a synthetic gasket which prevents exposure to oil, water and dust, while the die cast aluminum treadle has a friction type seal assuring watertight and oiltight performance.
Features:
- Foot switches are factory adjusted for center "off" with spring return from each direction
- Field conversion to 2 or 3 maintained positions
- Treadle travel is field adjustable
- Two 3/4 inch pipe tapped conduit entrances and an interior wall permits an additional entrance
- 6 nameplates, "start", "stop", "forward", "reverse", and two blanks are included
For non-stocked configurations, visit the Special Order page.
If you have any questions about using this product in your application, please do not hesitate to call or email us.
| Switch/Valve Type
|
Shield Option |
Gemco Catalog # |
| 2SPDT | without | 1025-C-2SP-X |
| 2SPDT | with | 1025-C-2SP-S |
| 2DP | without | 1025-C-2DP-X |
| 2DP | with | 1025-C-2DP-S |
| 2A4 | without | 1025-C-2A4-X |
| 2A4 | with | 1025-C-2A4-S |
| Part Number Cross Reference | ||
| Switch Type |
Cutler-Hammer Part Number |
Gemco Part Number |
| C | 10251-H26A | 1025-C-2SP-X |
For more information, please check the Gemco 1025 brochure or Gemco 1025C data sheet
| SKU | GEMCO-1025C |
|---|---|
| Shipping Weight (LBS) | 10.000000 |
| Manufacturer | Ametek |
| Manufacturer Part Number | 1025-C |
| Country of Manufacture | United States |
